Sandstone Gravel and Allroad

Frame Starting at $4,700.00. Build Kits Available Upon Request. Contact Us to Order.

Sturdy by Design

As the name implies, the Merlin Sandstone is prepared to go the distance regardless of the terrain, be it loose sand, uneven dirt, or chipped stone. Sandstone is available in two configurations to reflect the diversity of riders and locations: Allroad (SS40) and Gravel (SS50). Meticulously crafted and tested in the harshest conditions, the Sandstone is race ready gravel bike that handles well on a variety of surfaces. With signature s-bend seatstays, oversized hand contoured s-bend chainstays, and additive manufacturing, the Sandstone blends remarkable acceleration, superb climbing, precision descending and lasting comfort into a clean, elegant design.

Sandstone 40 and 50

The Sandstone is available in two options: allroad and gravel, to complement your riding style and terrain. Intelligent design paired with a hand selected Reynolds Technology tubeset and 3D printed titanium weldments, yields a compliant gravel bike for the route less travelled. The Sandstone is available in 8 stock sizes.

Allroad: Sandstone 40

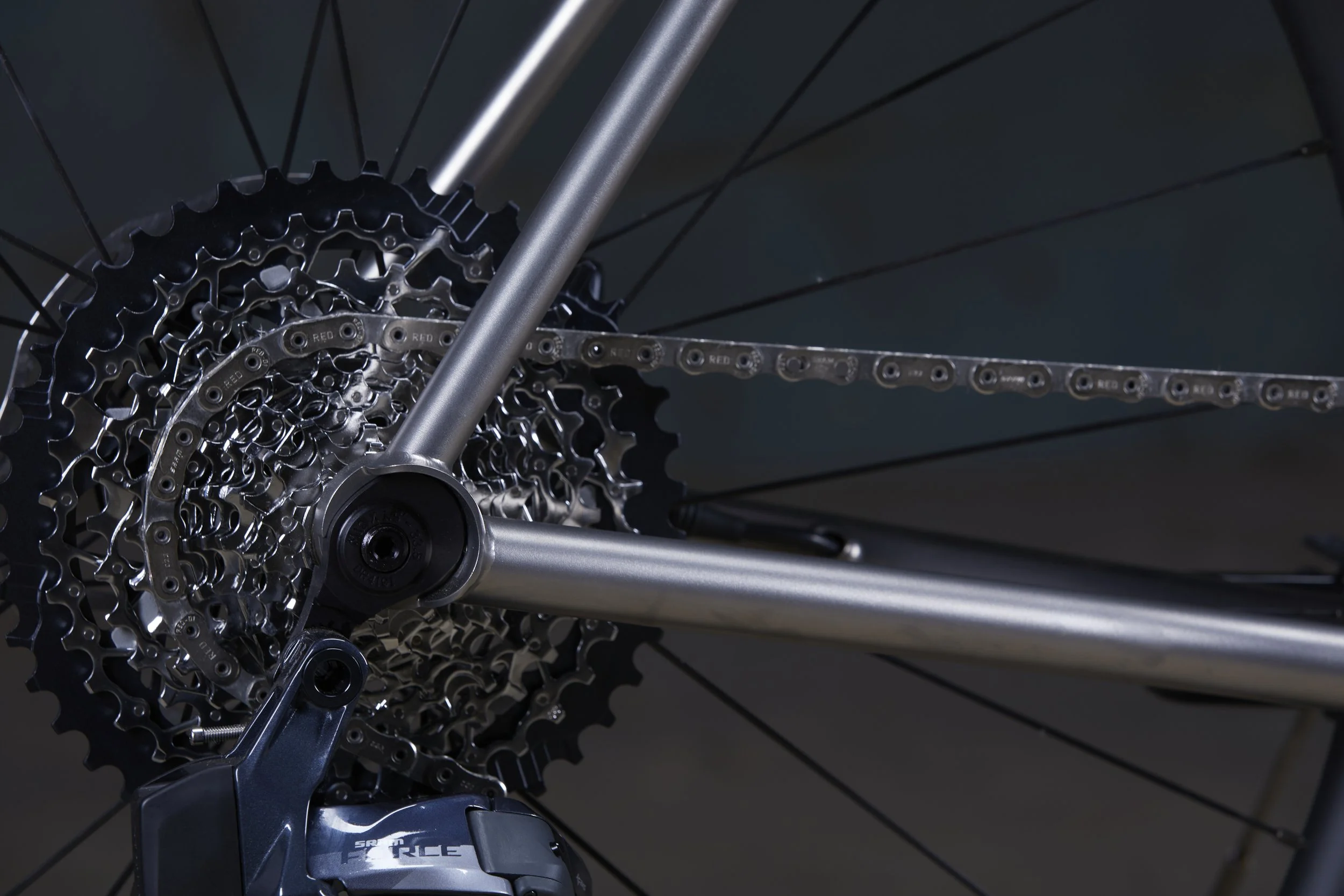

The Sandstone 40 is a modern allroad bike, equally capable on road and gravel. With Merlin’s custom 3D printed titanium chainstay yoke, the SS40 is capable of clearing a 700x40mm tire with short 420mm chainstays. The bike is designed to accommodate road drivetrains, giving you a narrow Q-factor and road gearing. The Sandstone 40 is the most versatile bike in our lineup: set it up as a lightweight and efficient endurance road bike or a fast and racy gravel bike.


      Sandstone 40
      46cm
      48cm
      52cm
      54cm
      56cm
      58cm
      60cm
      64cm



      Stack [mm]
      509
      535
      555
      567
      586
      605
      624
      643


      Reach [mm]
      360
      365
      370
      380
      385
      395
      405
      415


        Eff. TT [mm]
        511
        523
        535
        543
        559
        574
        590
        605


      Wheel Size
      650b
      700c


      HTA [deg]
      71°
      71°
      71.5°
      72°
      72°
      72°
      72°
      72°


      STA [deg]
      74°


      Seat Tube Length [mm]
      440
      460
      480
      500
      520
      540
      570
      600


      CS Length [mm]

      415
      420


        Wheelbase [mm]
        980
        982
        993
        996
        1013
        1029
        1040
        1061


      BBD [mm]
      55
      75


Sandstone 40	46cm	48cm	52cm	54cm	56cm	58cm	60cm	64cm
Stack [mm]	509	535	555	567	586	605	624	643
Reach [mm]	360	365	370	380	385	395	405	415
Eff. TT [mm]	511	523	535	543	559	574	590	605
Wheel Size	650b	700c
HTA [deg]	71°	71°	71.5°	72°	72°	72°	72°	72°
STA [deg]	74°
Seat Tube Length [mm]	440	460	480	500	520	540	570	600
CS Length [mm]	415	420
Wheelbase [mm]	980	982	993	996	1013	1029	1040	1061
BBD [mm]	55	75

Sandstone 40 geometry performance based on 47mm offset fork with 382mm axle to crown and 700 x 38c tires

Gravel: Sandstone 50

The Sandstone 50 merges the legendary ride quality of titanium with modern gravel bike design. Our custom 3D printed chainstay yoke is designed to clear the largest 700x50mm gravel tires on the market while maintaining short 430mm chainstays. Compared to the SS40, the SS50 has a longer wheelbase and more stable handling in the rough and loose roads. The SS50 is compatible with all 1x and 2x gravel drivetrains.


      Sandstone 50
      46cm
      48cm
      52cm
      54cm
      56cm
      58cm
      60cm
      64cm



      Stack [mm]
      514
      524
      549
      570
      589
      608
      627
      646


      Reach [mm]
      360
      365
      370
      381
      385
      395
      405
      415


        Eff. TT [mm]
        512
        525
        533
        544
        560
        574
        591
        606


      Wheel Size
      650b
      700c


      HTA [deg]
      70°
      70°
      71°
      71.5°
      72°
      72°
      72°
      72°


      STA [deg]
      74°


      Seat Tube Length [mm]
      440
      460
      480
      500
      520
      540
      570
      600


      CS Length [mm]
      420
      428


        Wheelbase [mm]
        997
        1010
        1003
        1010
        1026
        1042
        1052
        1077


      BBD [mm]
      55
      75


Sandstone 50	46cm	48cm	52cm	54cm	56cm	58cm	60cm	64cm
Stack [mm]	514	524	549	570	589	608	627	646
Reach [mm]	360	365	370	381	385	395	405	415
Eff. TT [mm]	512	525	533	544	560	574	591	606
Wheel Size	650b	700c
HTA [deg]	70°	70°	71°	71.5°	72°	72°	72°	72°
STA [deg]	74°
Seat Tube Length [mm]	440	460	480	500	520	540	570	600
CS Length [mm]	420	428
Wheelbase [mm]	997	1010	1003	1010	1026	1042	1052	1077
BBD [mm]	55	75

Sandstone 50 geometry performance based on 52mm offset fork with 398mm axle to crown and 700 x 50c tires.

Refined Aestetics

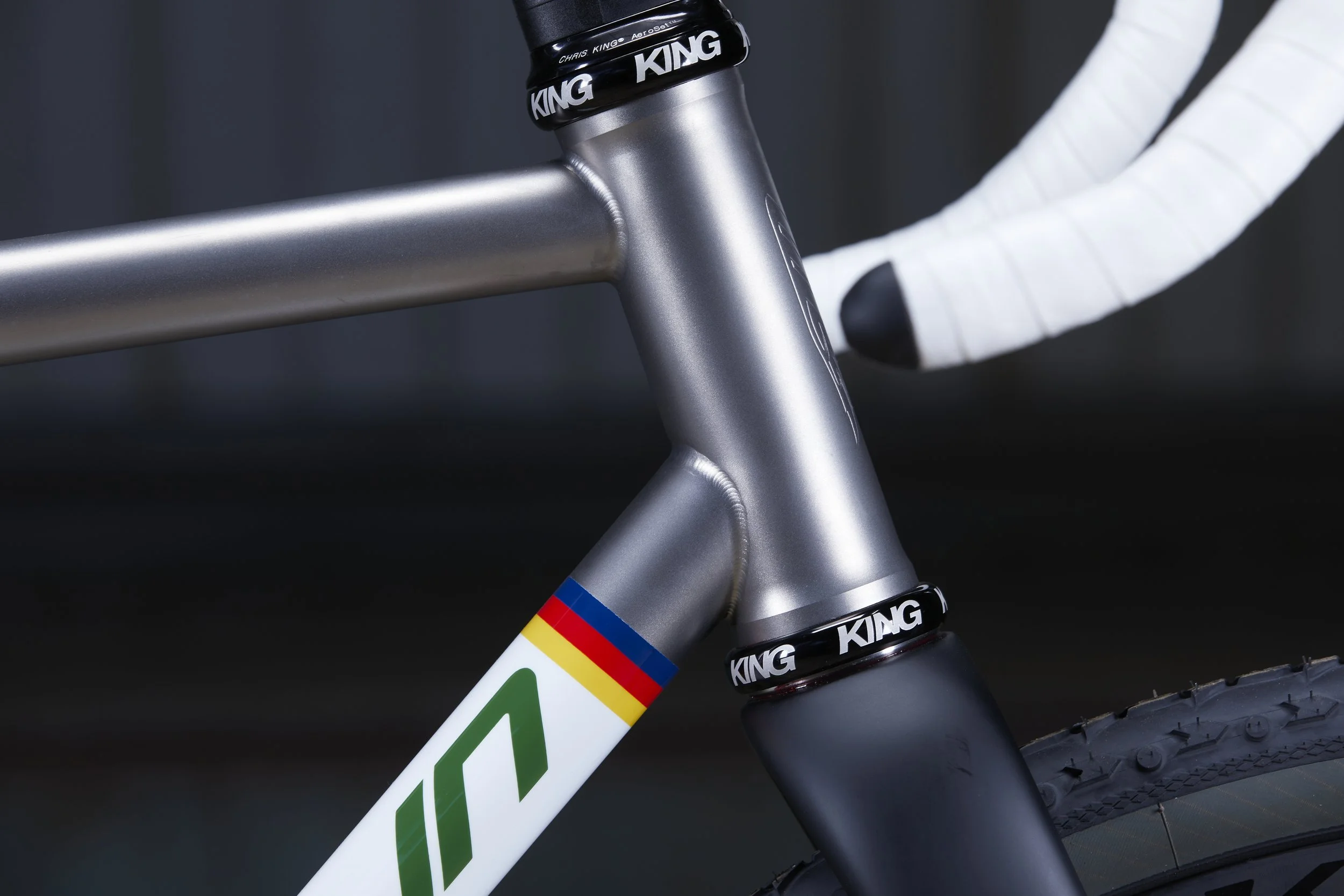

The Sandstone's beautifully crafted head tube badge, finishing, anodizing, and meticulous welds are a testament to Merlin's commitment to frame quality and aesthetics.
Check out our finish options: here

Cold Worked Titanium

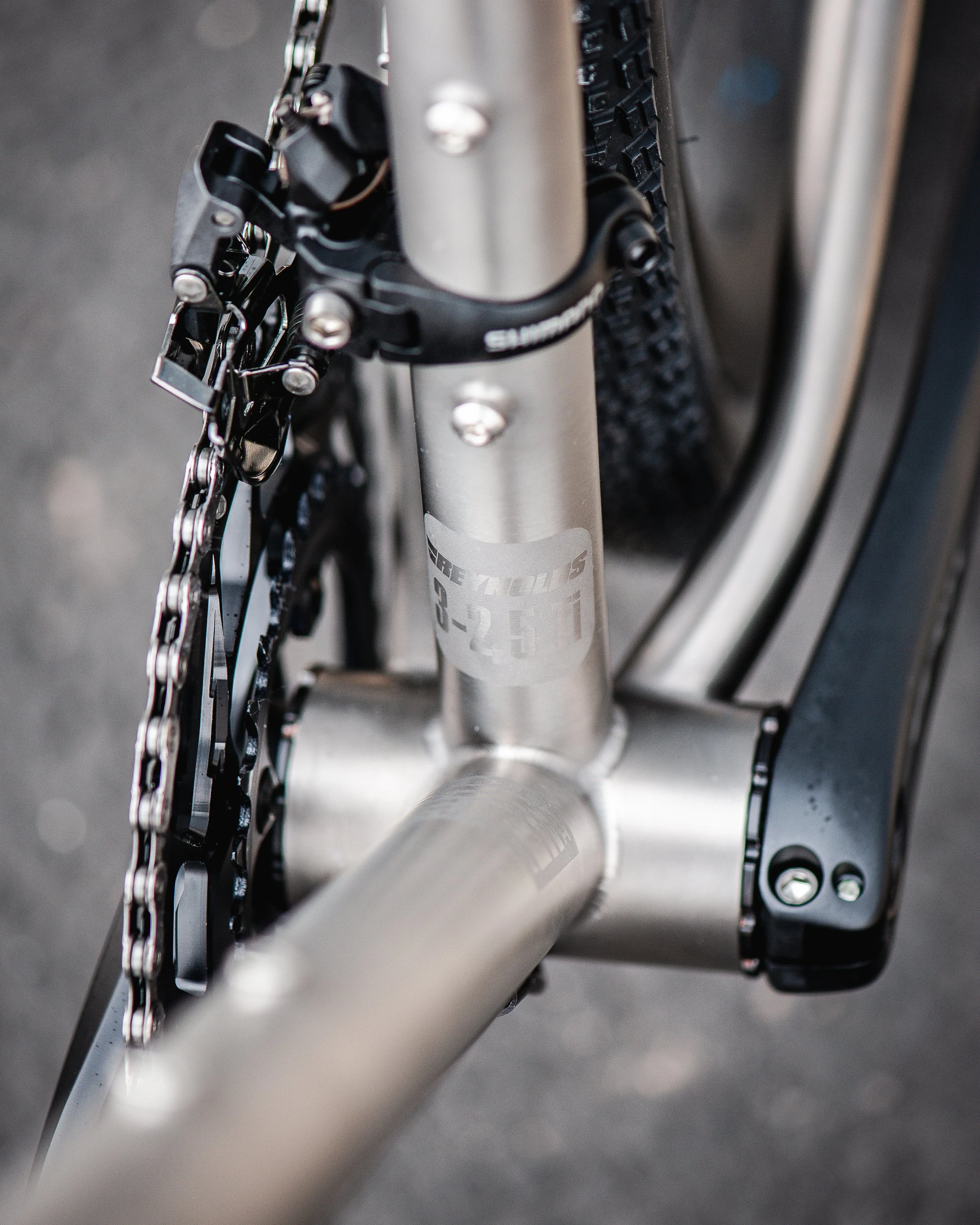

The careful shaping and cold working of the Sandstone's oversized tubeset results in a 45% increase to the titanium's remarkable strength, enhancing bottom bracket stiffness while delivering a smooth, comfortable ride.

Frame Details

Merlin Stock Options

Size-Specific, precision drawn cold worked Reynolds Double Butted tubing, custom spec'd seat and chainstays based on design
Perfectly sequenced double pass welds to create the most accurate and strongest joints in the industry
American-manufactured 44mm headtube
Bottom Bracket: T47
Axle standards: 142x12 thru axle
Brake stock options: Flat Mount Disc
Two standard bottle mount locations
Handcrafted Merlin Eagle Head Badge

Hand Made in the USA
Frame Weight: 3.0 lbs (Medium)

Frame Only. All components sold separately. The frame does not include a fork, headset, or bottom bracket.
